The AR S5000 Series is designed for premium wellness environments, offering smooth pressurisation up to 2.0 ATA and a quiet, spacious, user-focused experience. These chambers support a wide range of wellness, recovery, and performance goals, allowing operators to tailor each session based on individual needs, comfort levels, and studio protocols. Session structure such as pressure, duration, and frequency, can be adjusted to create gentle relaxation sessions, athletic recovery blocks, or higher-intensity performance routines. The table below provides a general overview of how hyperbaric oxygen sessions are commonly organised across the wellness industry. Always personalise sessions according to user experience, operator guidance, and facility best practices.

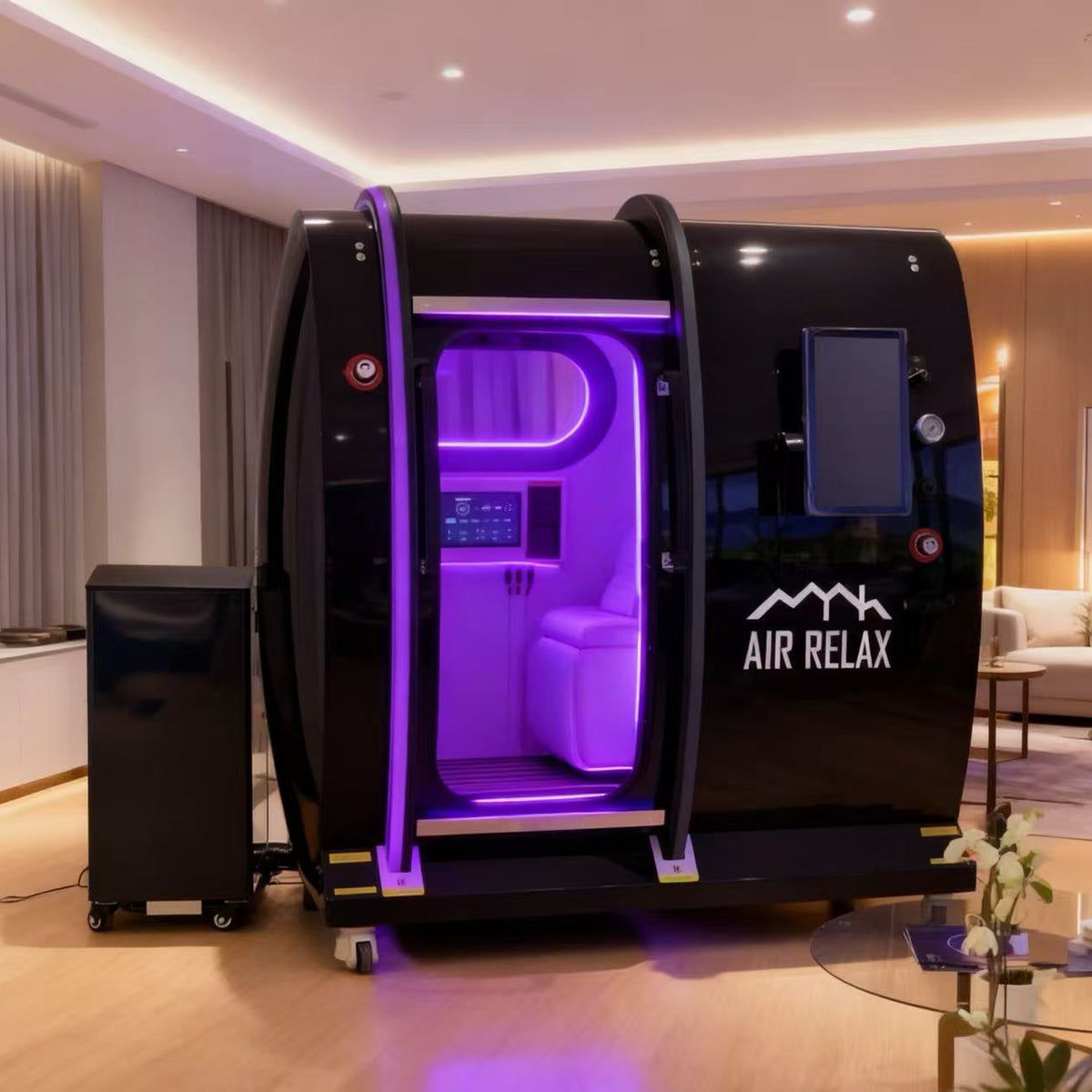

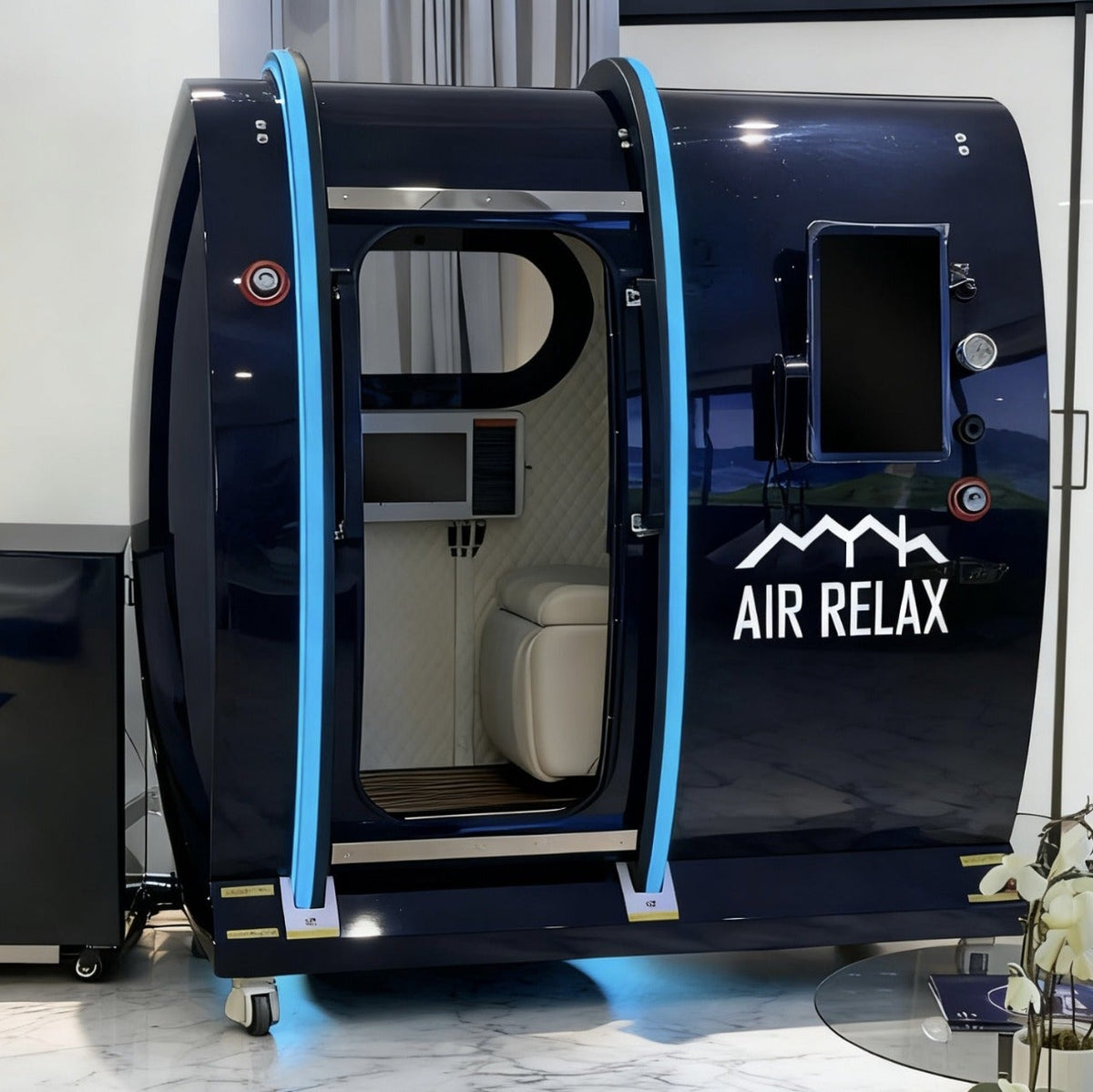

Air Relax AR S5000-S — Seated Steel-Reinforced Hard-Shell Hyperbaric Chamber

• Premium upright hard-shell chamber engineered for wellness centers, sports recovery studios, biohacking labs, and commercial performance environments
• Constructed from a one-piece stainless-steel shell, minimizing potential leak points and ensuring long-term structural integrity under repeated 2.0 ATA operation
• Large polycarbonate front door (500 × 1160 mm) offers wide access, excellent visibility, and a secure pressure seal for user comfort
• Operational pressure range: 1.0 – 2.0 ATA (100 kPa), suitable for a wide variety of recovery and wellness protocols determined by the operating practitioner

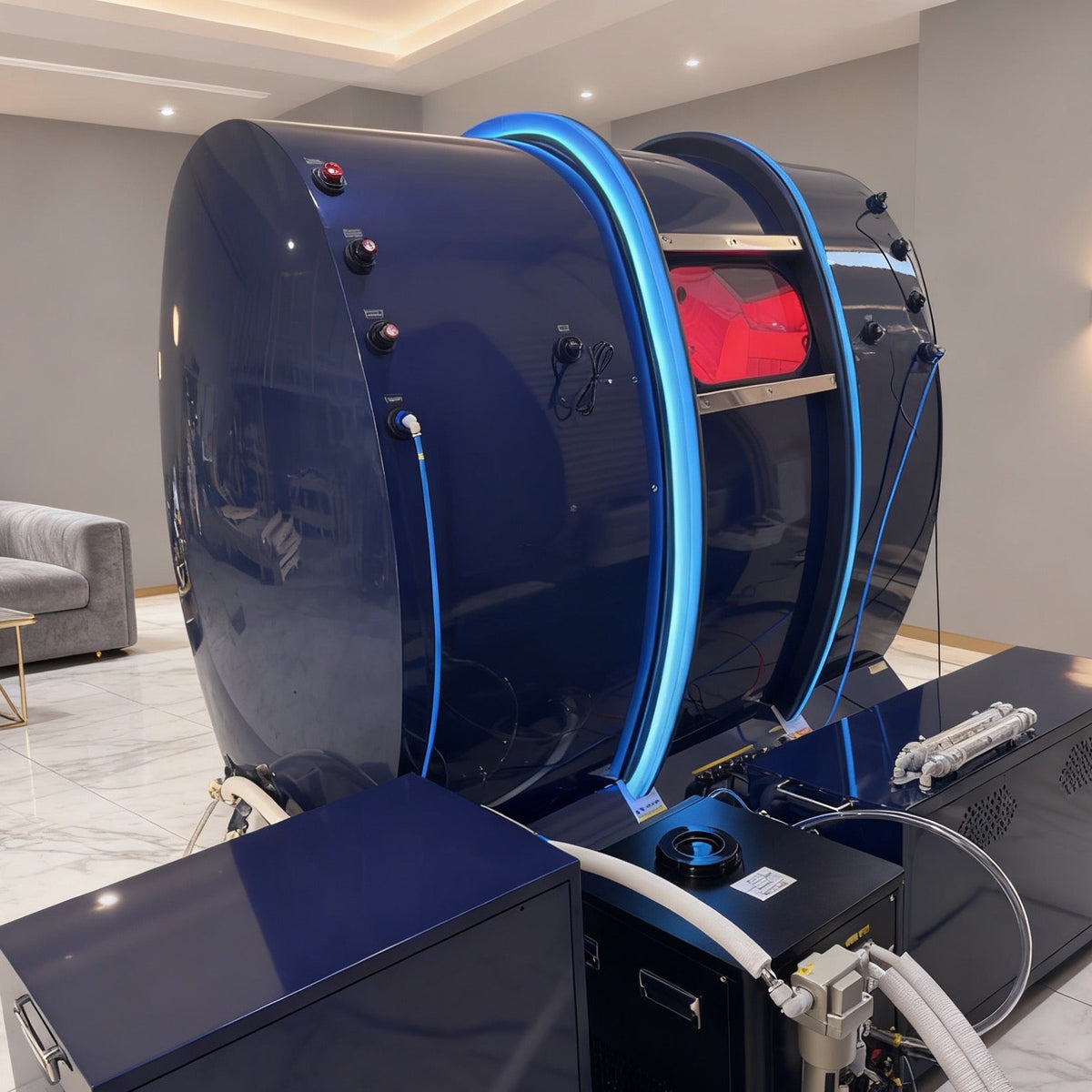

• Includes an external all-in-one machine (approx. 1737 × 878 × 1875 mm) delivering around 60 L/min airflow with low vibration and stable performance
• Dedicated air-conditioning module with a controlled temperature range of approximately 2–10 °C to keep the internal environment comfortable during longer sessions
• Dual internal and external LCD control systems give both operator and user clear, real-time information on pressure, time, and system status
• Built-in automatic deflate valves, dual manual relief valves, and an emergency decompression valve provide layered safety and controlled pressure release if needed
• Features simultaneous intake and exhaust plus a carbon dioxide removal design, helping maintain fresh airflow and internal air quality
• Two-way intercom communication between the operator and the user ensures reassurance, guidance, and continuous contact during each session
• Quiet external system operation (around < 50–60 dB) and a near-silent internal environment, suitable for premium spa-style and relaxation-focused settings

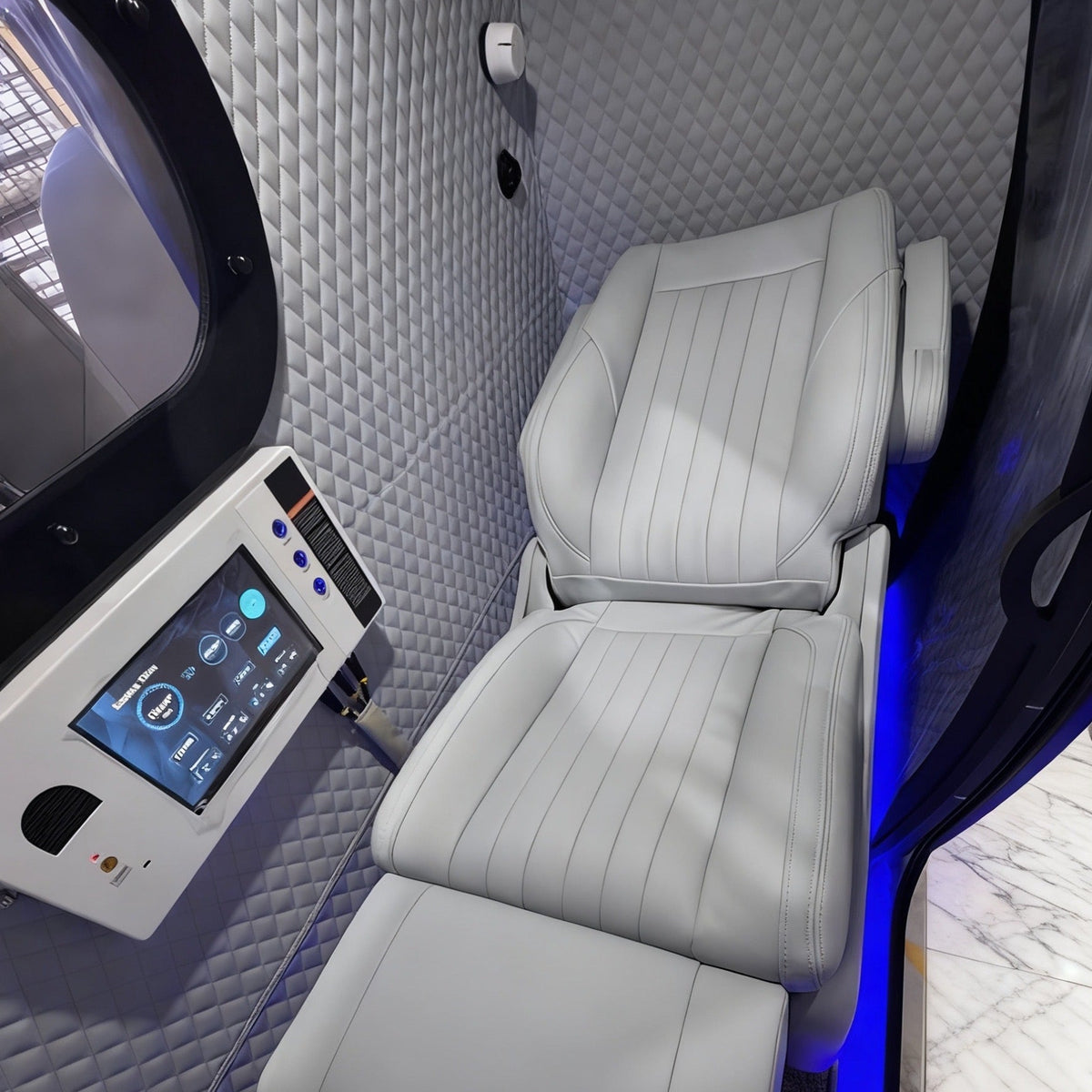

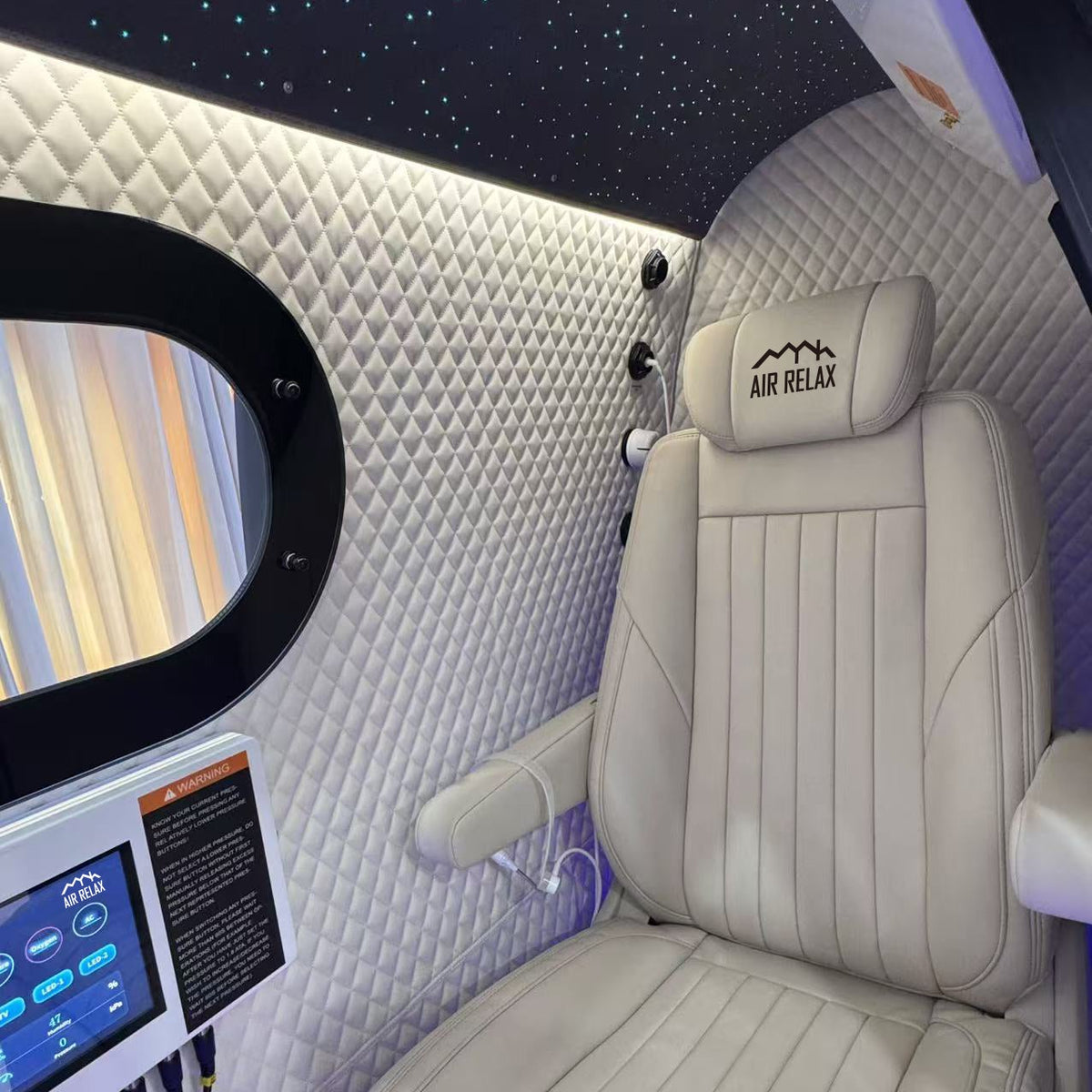

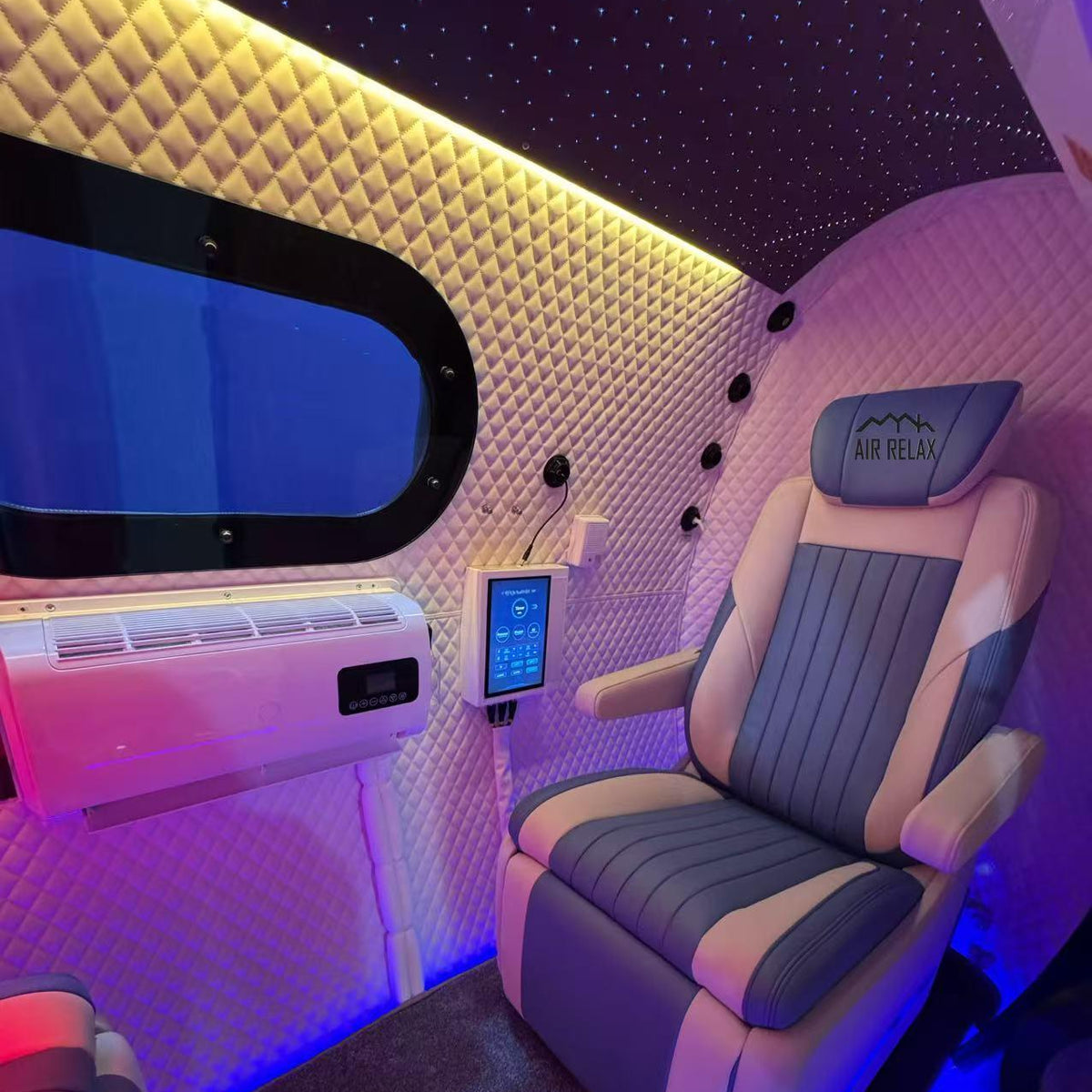

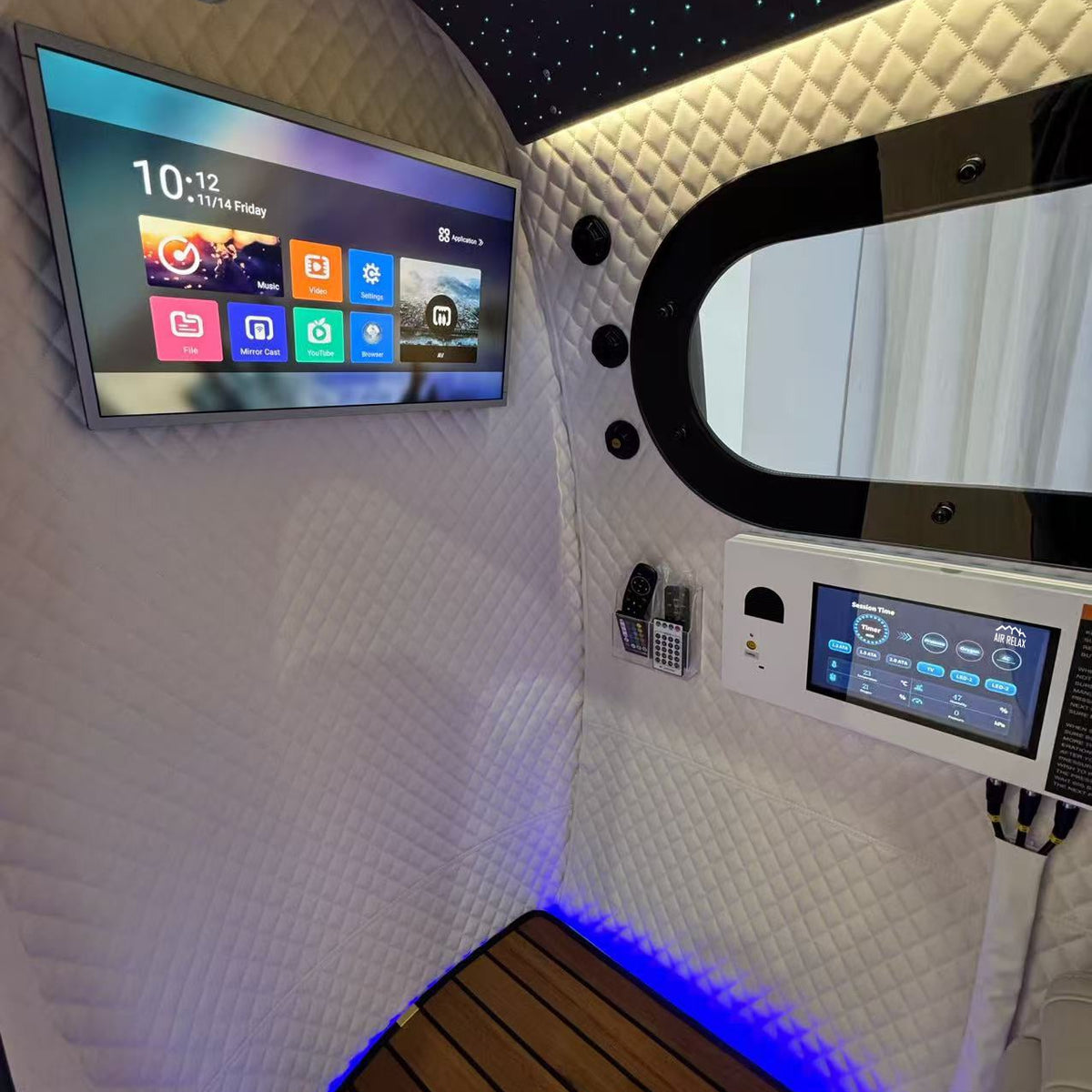

• Bright, upright interior with ambient lighting, spacious feel, and large door opening supporting users who prefer a vertical seated position
• Chamber cabin dimensions: 1750 × 1000 × 1800 mm  |  Net weight: approx. 380 kg
• Mounted on movable wheels to simplify installation, repositioning, and room layout adjustments
• Designed for 1 seated user, with the ability to connect oxygen headsets according to the facility’s chosen oxygen delivery setup
• Compatible with external oxygen concentrators, enhanced cooling options, and additional comfort or entertainment integrations
• Delivered with chamber cabin, all-in-one machine, integrated air-conditioning, interior lighting, intercom, safety controls, and user documentation
• Ideal for facilities that require full 2.0 ATA capability in a compact, vertical, steel-reinforced configuration

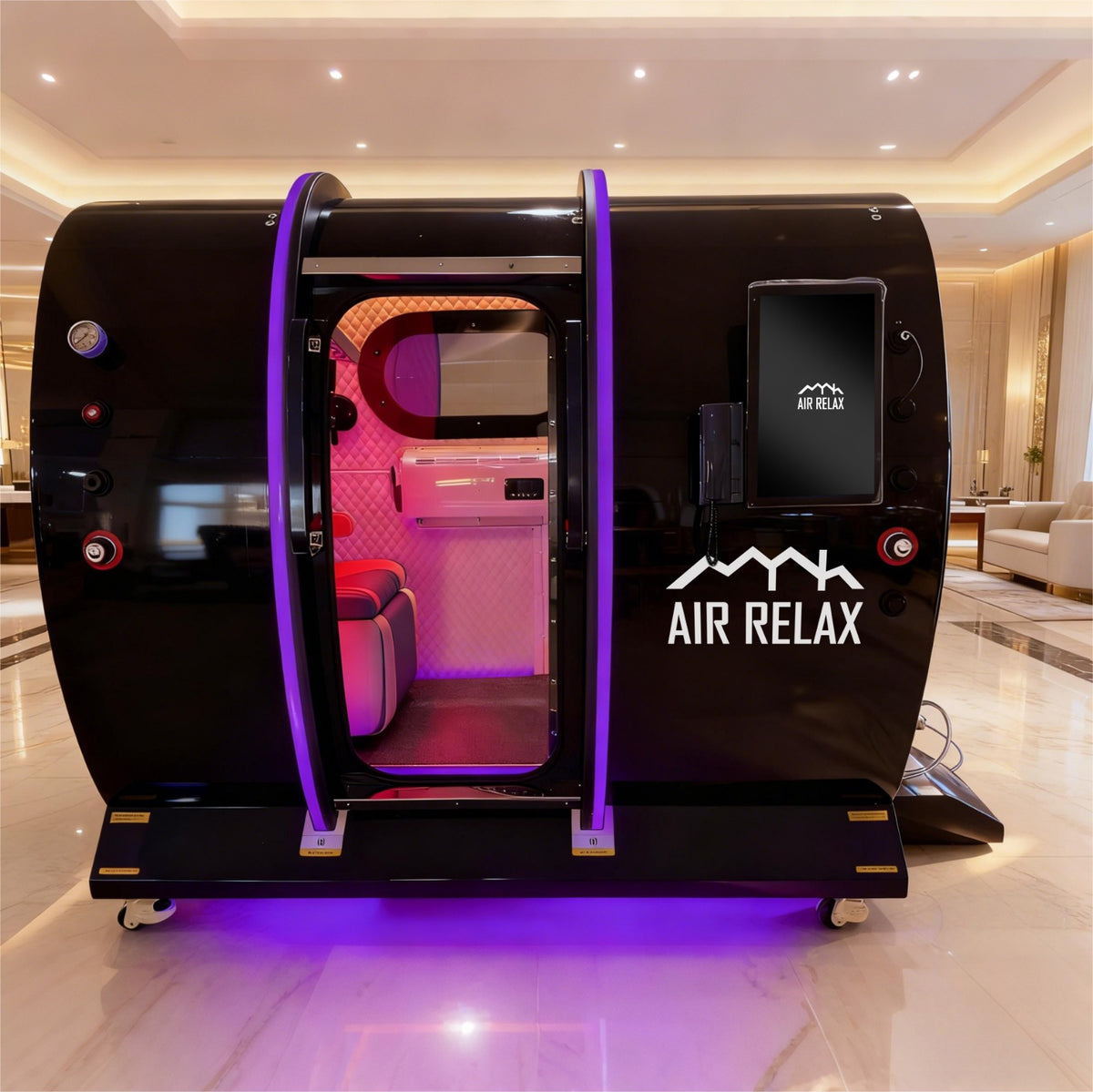

Air Relax AR S5000-D — Dual-User Vertical Hard-Shell Hyperbaric Chamber

• Upright hard-shell chamber designed for 1–2 seated users, perfect for shared sessions, couples, or higher-throughput wellness environments
• One-piece stainless-steel construction with polycarbonate elements, combining strength, corrosion resistance, and a clean, modern aesthetic
• Generous front door opening (500 × 1160 mm) allows easy entry and exit, supporting users with mobility limitations and reducing feelings of claustrophobia
• Operational pressure range: 1.0 – 2.0 ATA (100 kPa), controlled via automated systems with manual override options for experienced operators
• Chamber cabin dimensions: 2200 × 1000 × 1800 mm  |  Net weight: approx. 380 kg
• External all-in-one machine (approx. 76 × 45 × 65 cm, 80 kg) with dual air filters, 72 L/min airflow, and 110/220 VAC input to suit a wide range of facilities
• Supplied with two high-capacity oxygen concentrators (approx. 10 L/min each at ~95% O₂), enabling robust oxygen delivery through headsets or masks as configured by the operator
• Integrated automatic deflate valves, manual decompression knobs, and dual pressure gauges (internal & external) support controlled, stable operation
• Two-way intercom system and mirrored control logic inside and outside the chamber help maintain communication and user confidence throughout each session
• Engineered with simultaneous intake and exhaust to assist in carbon dioxide management and maintain a fresher internal atmosphere
• Quiet-running external equipment with noise levels designed around a premium wellness experience, suitable for spas, clinics, and performance centers

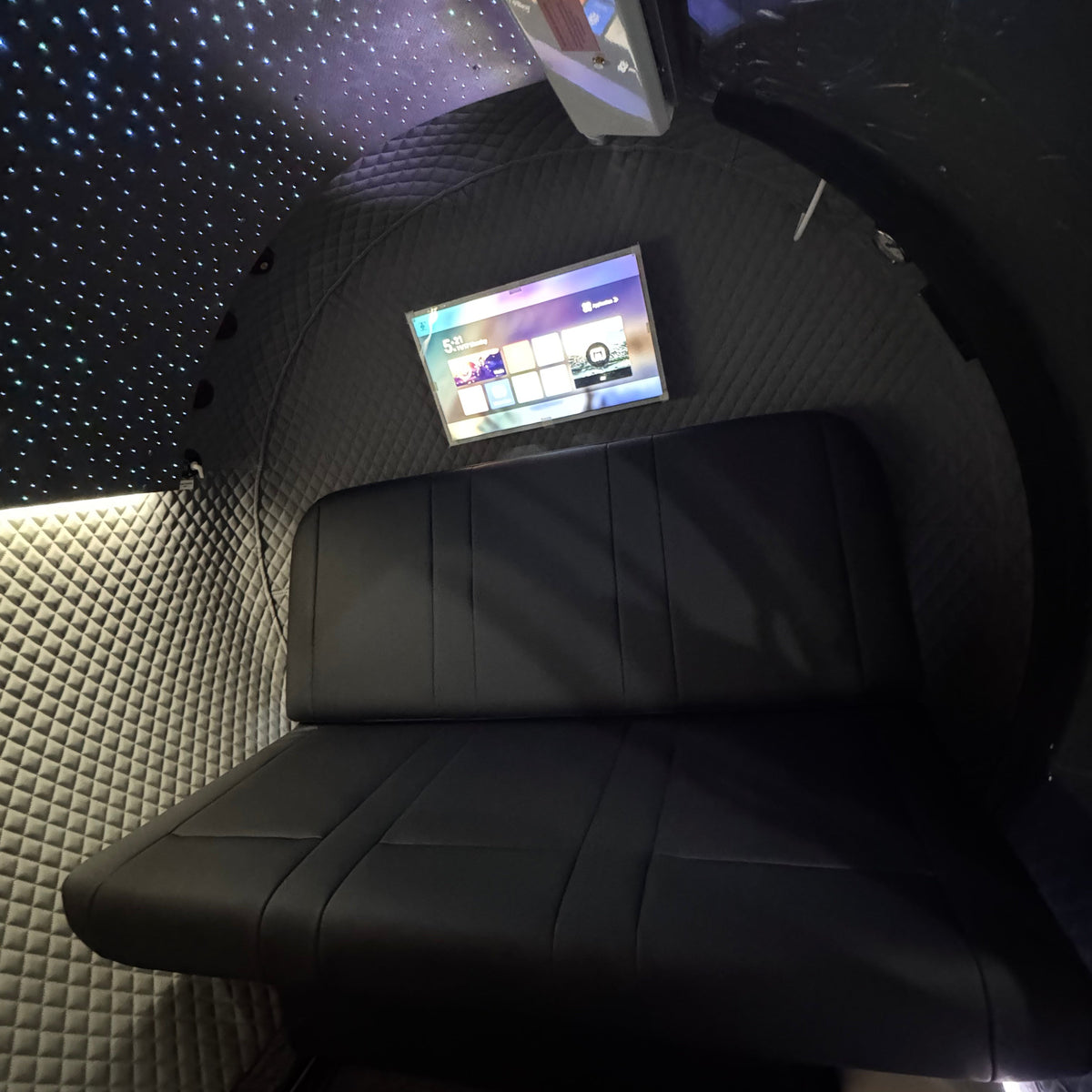

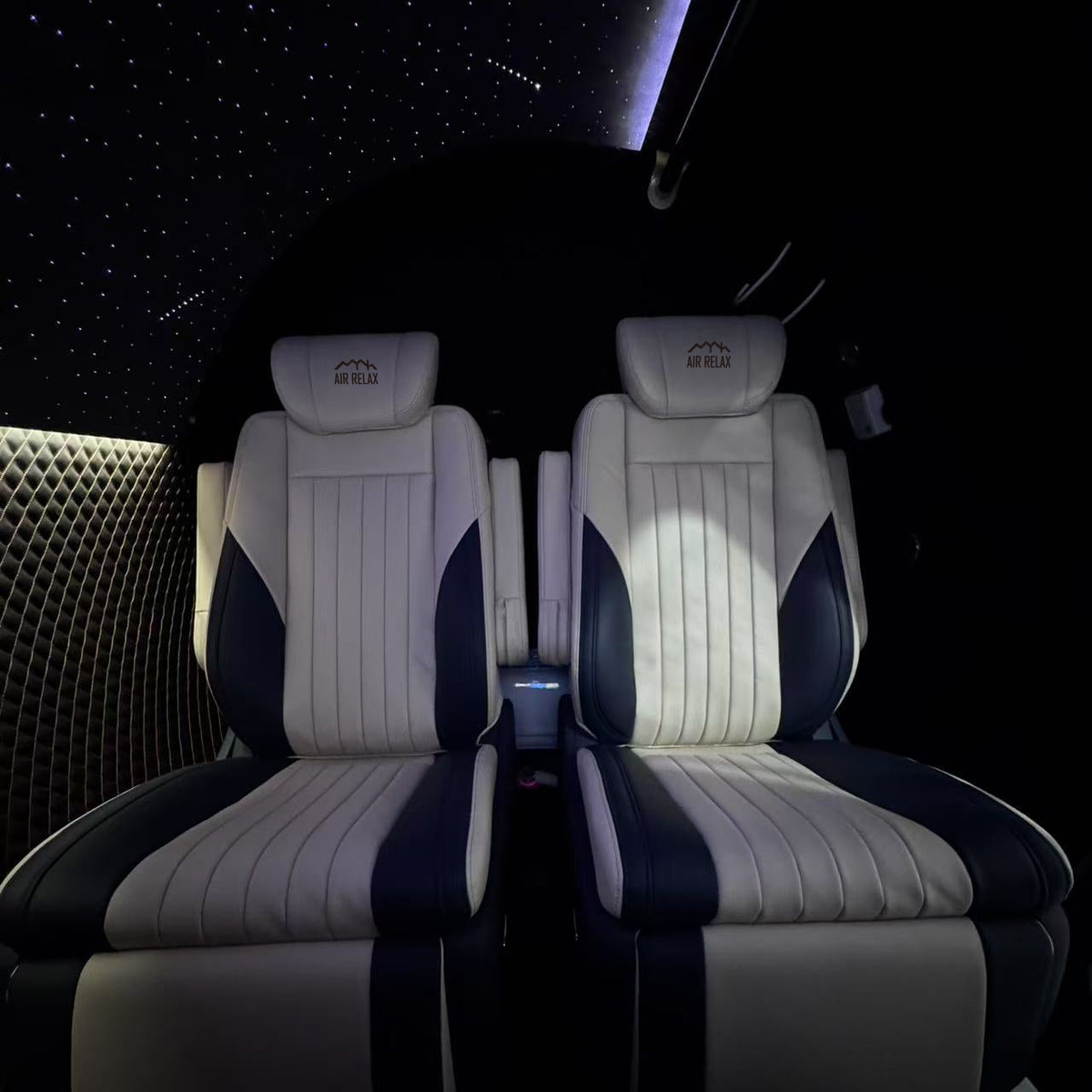

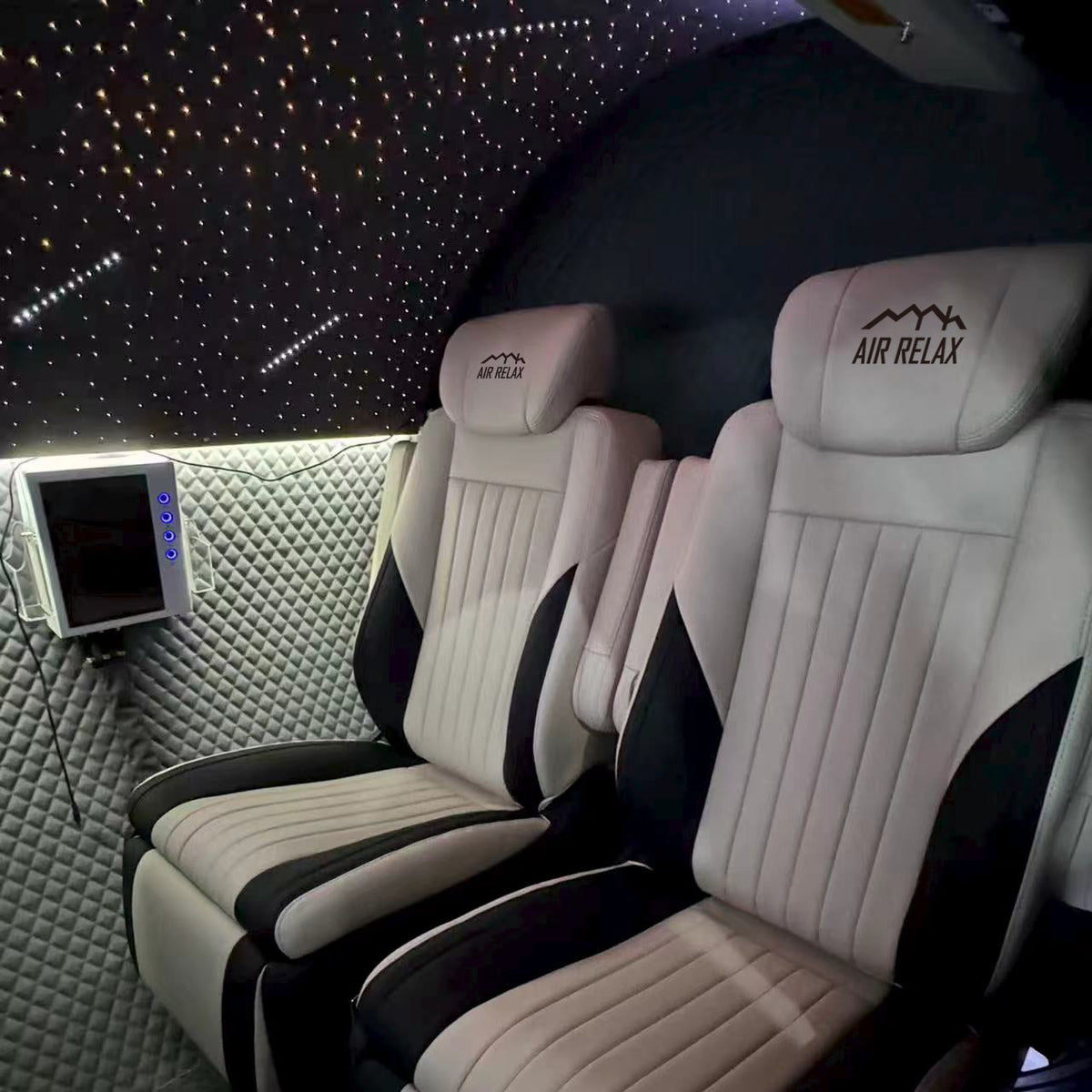

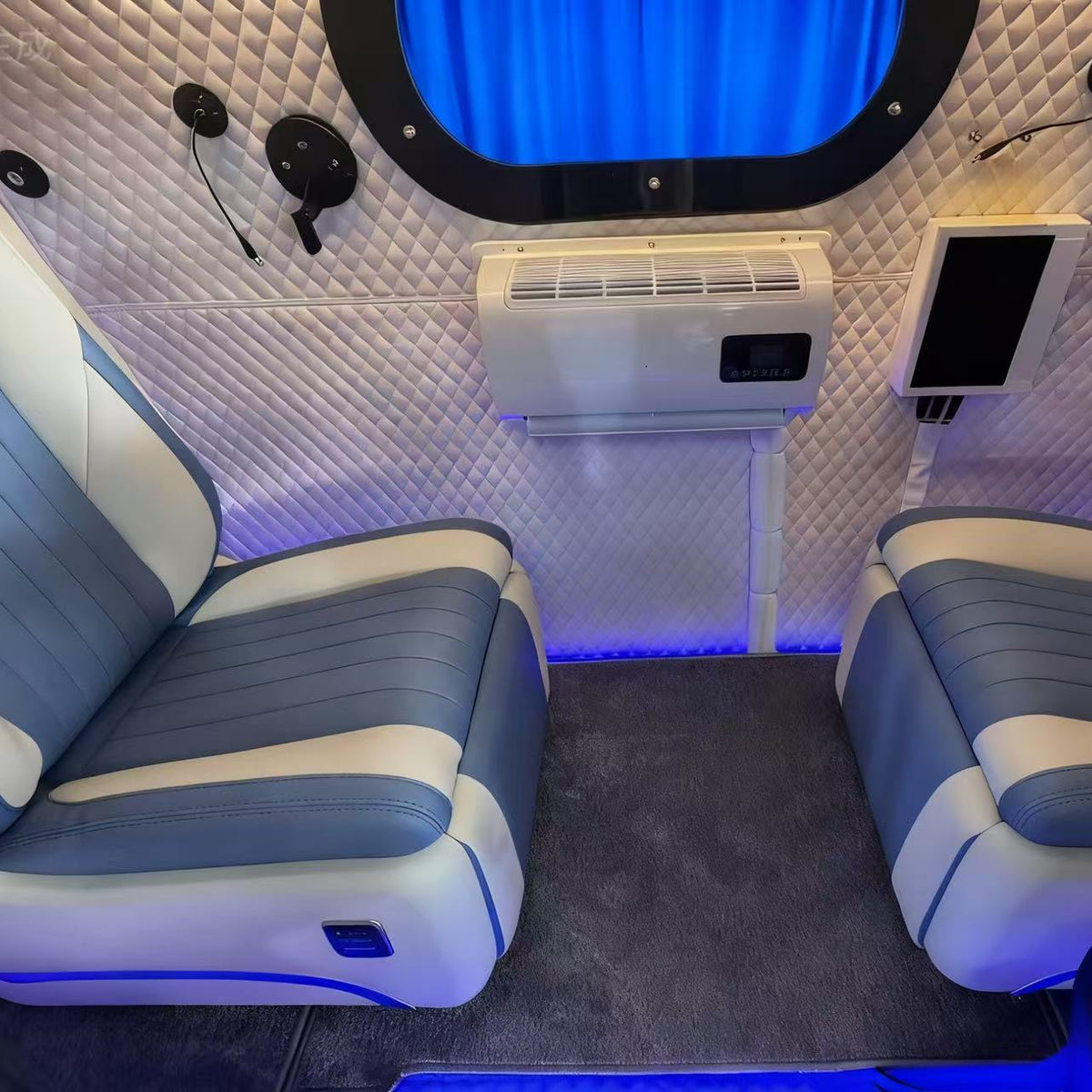

• Bright, spacious vertical interior that can be configured as single-seat, dual-seat, or a compact bed layout depending on use-case and brand positioning
• Capacity rated for approximately 2–3 people depending on seating configuration, ideal for facilities wanting flexible scheduling and multi-user options
• Mounted on wheels for easier room layout changes and service access
• Delivered with chamber cabin, all-in-one machine, dual oxygen concentrators, interior lighting, intercom, emergency controls, and user documentation
• Designed as a compact but powerful dual-user vertical solution for wellness centers, recovery studios, physiotherapy and performance environments

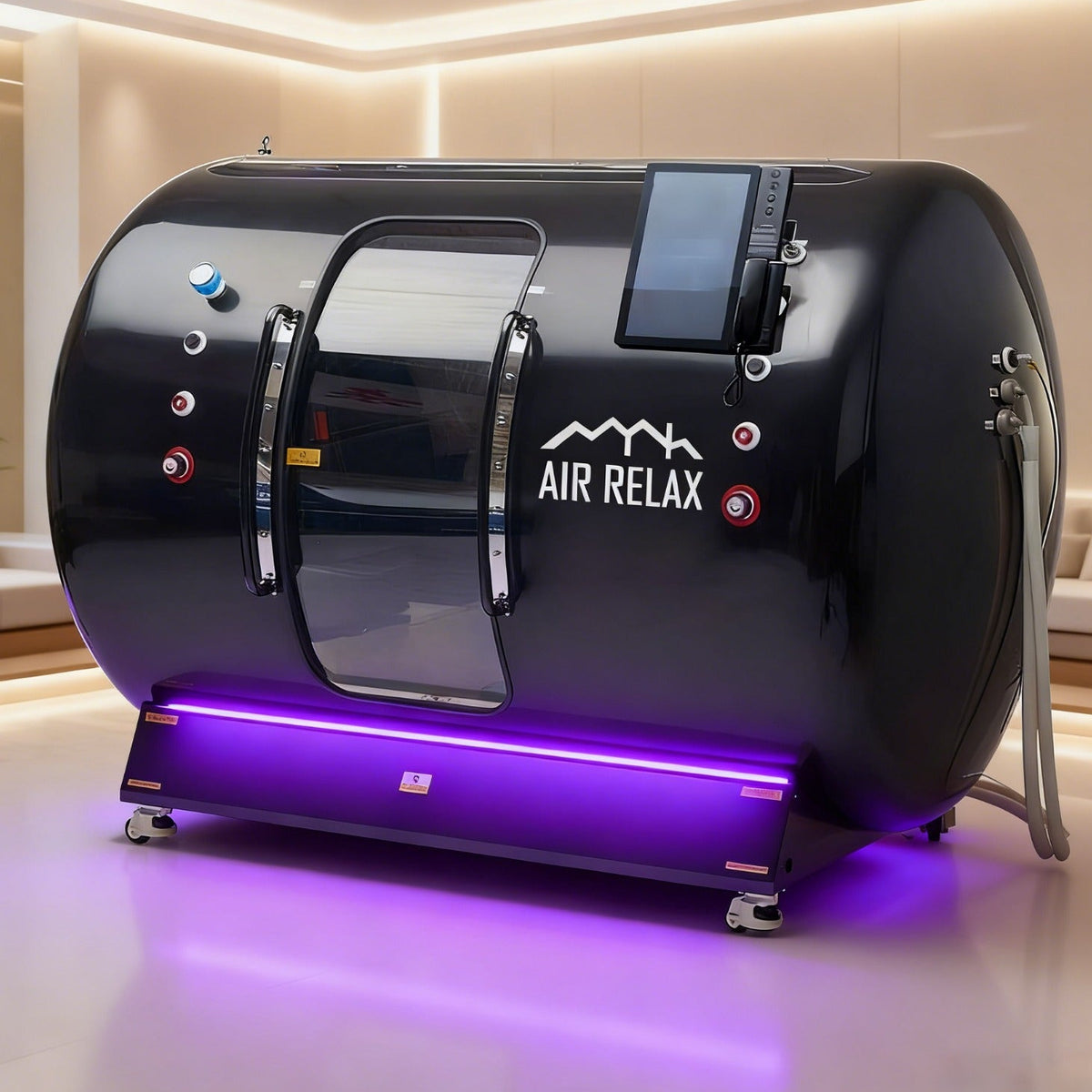

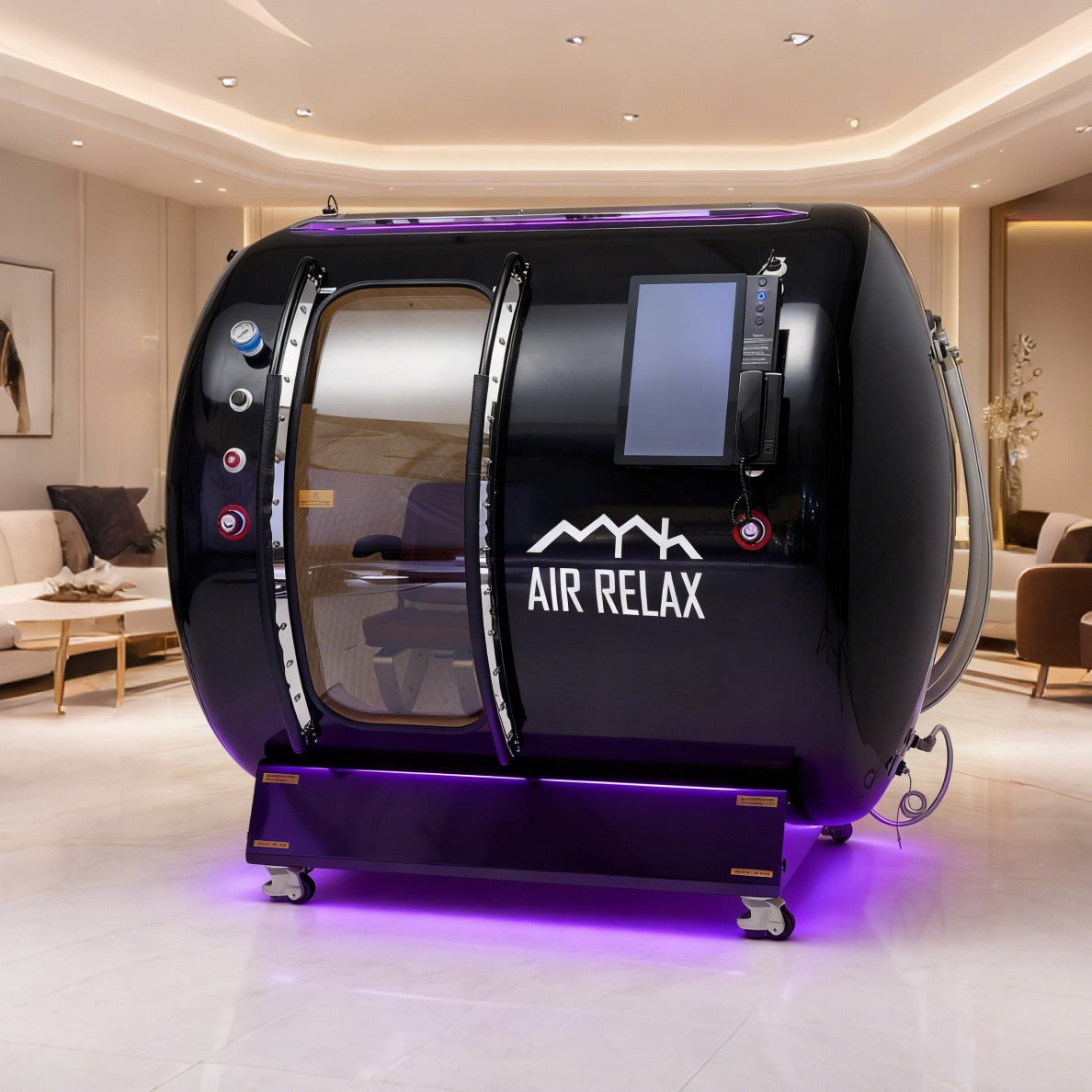

Air Relax AR S5000-L — Multiplace Horizontal Hard-Shell Hyperbaric Chamber

• Full-size horizontal multiplace chamber optimized for 1–5 users, ideal for busy wellness centers, performance facilities, and commercial recovery studios
• Built from a stainless-steel cabin with polycarbonate elements, combining robust structural strength with a bright, open interior feel
• Three-size platform family (Mini, L, XL) — the AR S5000-L corresponds to the M-size cabin (HE5000), balancing footprint and internal space
• Chamber cabin dimensions (AR S5000-L M-size): 2070 × 1606 × 1753 mm  |  Net weight: approx. 420 kg
• Front door opening: 500 × 1160 mm, with a wide linear sliding design for comfortable entry and exit even in shared sessions
• Operational pressure range: 1.0 – 2.0 ATA (100 kPa), providing a versatile platform for a variety of wellness-oriented session structures
• Includes an external all-in-one machine (approx. 76 × 45 × 65 cm, 80 kg) with dual air filters and around 72 L/min airflow to support multiplace operation
• Supplied with two oxygen concentrators (approx. 10 L/min each at ~95% O₂), supporting up to 5 oxygen headsets as configured by the facility
• Interior capacity rated for 1–5 people with flexible layouts: bench seating, 3-seater, 5-seater, or mixed reclined configurations depending on your service model
• Integrated CO₂ removal concept, simultaneous intake/exhaust, and upgraded airflow help maintain a comfortable internal environment during longer sessions
• Dual LCD control systems inside and outside the cabin allow real-time monitoring and control of pressure and session timing by both operator and users
• Comprehensive safety design including automatic deflate valves, manual emergency decompression, dual pressure gauges, and an emergency stop function
• Bright, spacious interior with optional entertainment additions (e.g. TV, audio) and LED lighting to create a premium, relaxing atmosphere
• Mounted on movable wheels for easier installation and facility layout adjustments
• Perfect for operators who want a horizontal multiplace chamber that fits comfortably into most commercial floor plans while still supporting group sessions
• Delivered with chamber cabin, all-in-one machine, dual oxygen concentrators, interior lighting, intercom, emergency controls, and documentation

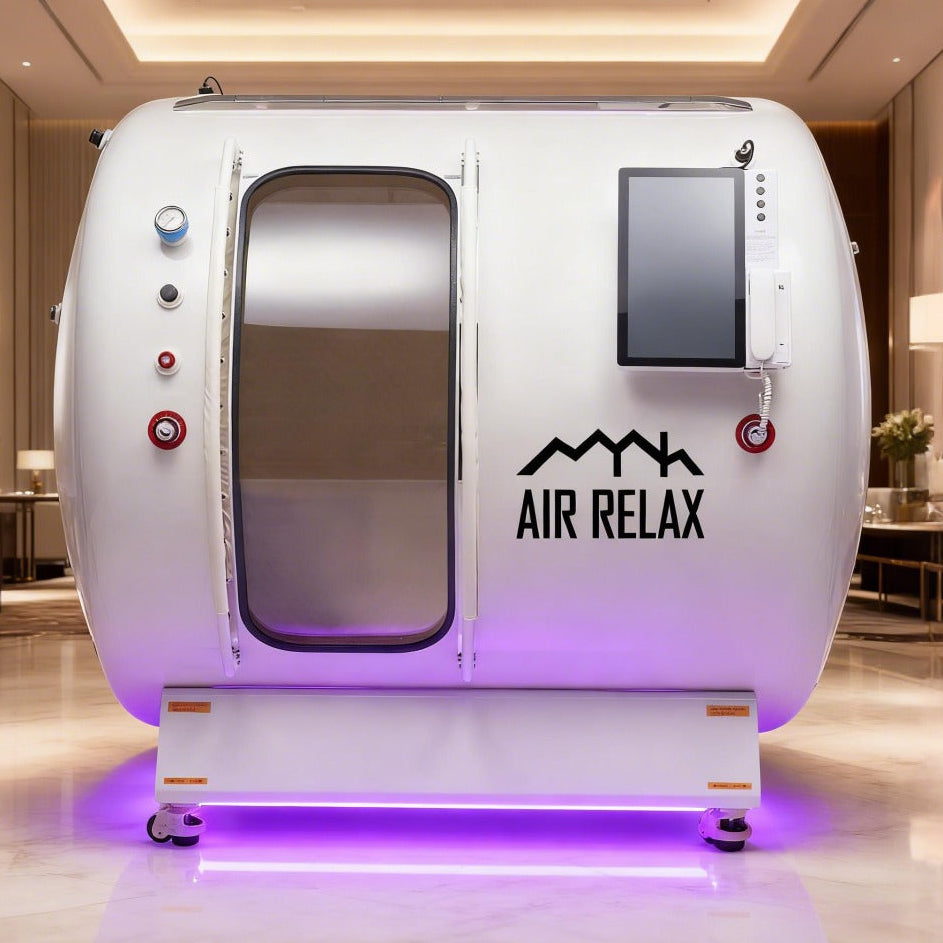

Air Relax AR S5000-XL — Extended Multiplace Hard-Shell Hyperbaric Chamber

• Flagship horizontal multiplace chamber with an extended cabin length, designed to deliver the most spacious and versatile group experience in the AR S5000 range
• One-piece stainless-steel construction with polycarbonate viewing elements, engineered for high durability, easy cleaning, and long-term commercial use

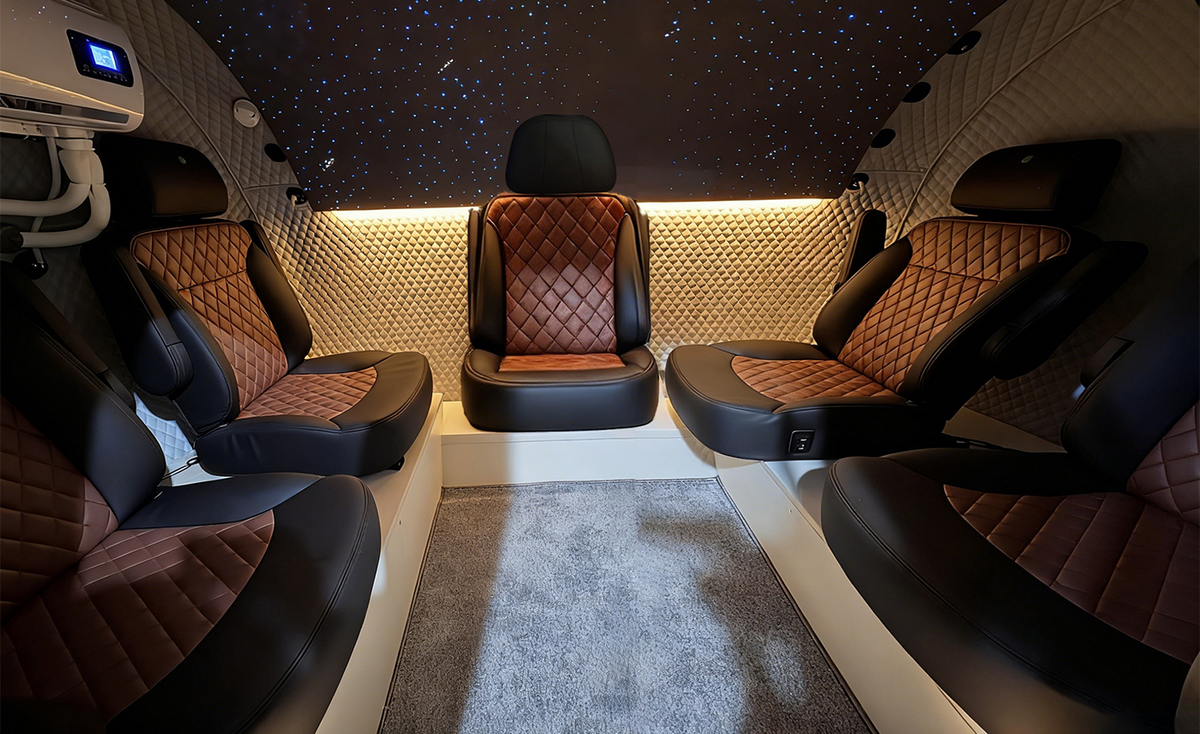

• Chamber cabin dimensions (AR S5000-XL L-size / HE5000 Plus): 2500 × 1606 × 1753 mm  |  Net weight: approx. 500 kg
• Front door opening: 500 × 1160 mm, maintaining the same generous access as the AR S5000-L, but with additional internal floor space
• Operational pressure range: 1.0 – 2.0 ATA (100 kPa), with smooth pressurisation curves controlled through the all-in-one system and dual control panels
• External all-in-one machine (approx. 76 × 45 × 65 cm, 80 kg) delivering around 72 L/min airflow, dual-stage filtration, and consistent system performance
• Includes two oxygen concentrators (approx. 10 L/min each at ~95% O₂), supporting up to 5 oxygen headsets and flexible seating configurations
• Internal capacity rated for 1–5 users with over seven possible seating layouts, including bed-type, 3-seater, 5-seater, and custom arrangements for your brand
• Upgraded air conditioning with adjustable airflow direction to keep the extended cabin cool and comfortable during multi-user sessions
• Integrated carbon dioxide management, simultaneous intake and exhaust, and high-quality air handling for a pleasant, stable internal atmosphere
• Dual internal and external LCD control systems, pressure gauges, automatic deflate, and emergency decompression valves provide a robust safety and control framework
• Quiet-running external machinery and a calm internal acoustic profile, suitable for luxury wellness spaces, VIP suites, and high-end commercial environments

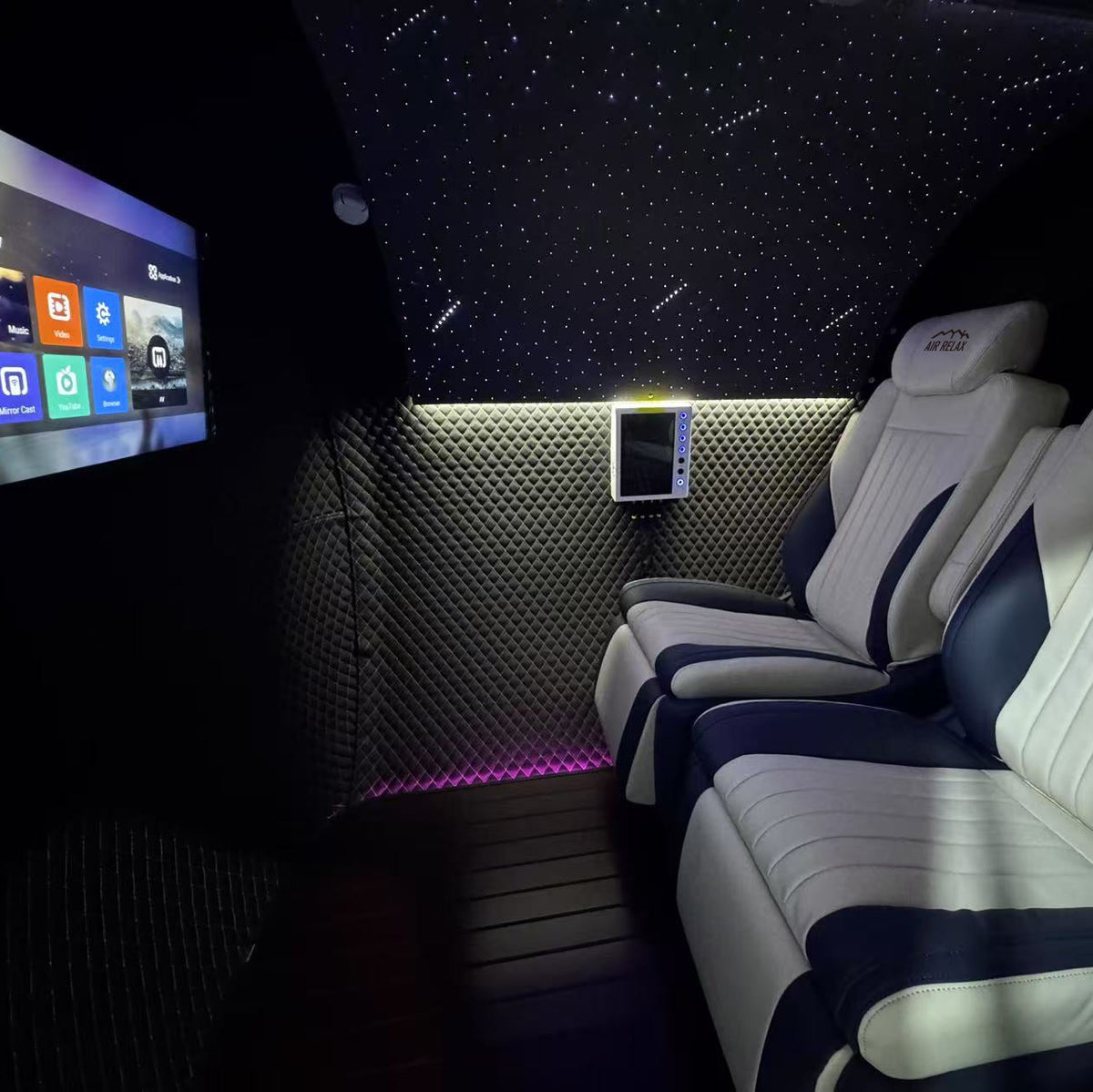

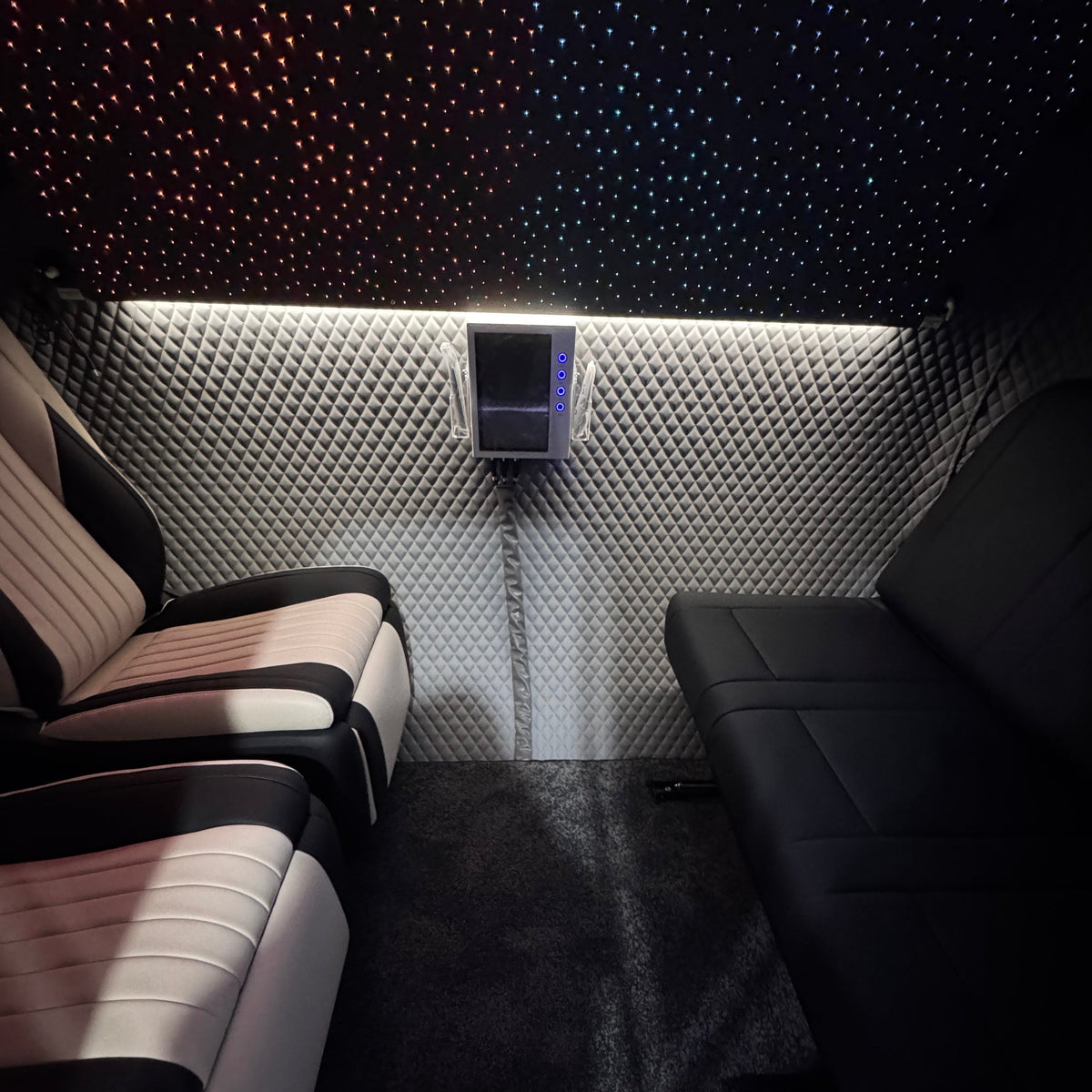

• Spacious, bright interior with room for entertainment options (TV, Bluetooth audio, etc.), LED strip lighting, and premium seating for a truly elevated user experience
• Mounted on wheels to support flexible installation, relocation within the facility, and service access
• Best suited for facilities that want to offer group sessions, premium memberships, and high-ticket wellness programs in a large-format, 2.0 ATA-capable chamber
• Delivered as a complete system including chamber cabin, all-in-one machine, dual oxygen concentrators, interior lighting, intercom, safety controls, and documentation

AR S5000 Series — Hyperbaric Wellness Benefits

Designed for premium wellness environments, performance recovery, and restorative oxygen-focused sessions. See the HYPERBARIC OXYGEN THERAPY GUIDE below for treatment recommendations.
